SWITCH DISCONNECTORS 3P 1000A
SWITCH DISCONNECTORS 3P 1000A

SWITCH DISCONNECTORS 3P 1000A

Pilih Jumlah kutub
Pilih Arus pengenal
Kode Produk 33488
Nama Produk SWITCH DISCONNECTORS 3P 1000A
Keterangan COMPACT NSX-NA, NS-NA SCHNEIDER ELECTRIC - 33488
Promo

Brand Schneider Electric
Poles 3P
Rated Current 1000A
Tipe Compact NS-NA
Kode Produk : 33488 Brand : Schneider Electric Nama Produk : SWITCH DISCONNECTORS 3P 1000A Keterangan : COMPACT NSX-NA, NS-NA SCHNEIDER ELECTRIC - 33488

Specification
Type of electrical connection of main circuit Screw connection
Version as emergency stop installation FALSE
Type of control element Toggle
Version as reversing switch FALSE
Suitable for front mounting centre FALSE
Rated permanent current Iu 1000 Ampere
Max. rated operation voltage Ue AC 690 Volt
Number of poles 3
Height 327 Millimetre
Version as main switch TRUE
Rated short-time withstand current lcw 25 kiloampere
Voltage release optional TRUE
Device construction Built-in device fixed built-in technique
Interlockable TRUE
Width 210 Millimetre
Version as maintenance-/service switch TRUE
Number of auxiliary contacts as normally closed contact 0
Version as safety switch FALSE
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as change-over contact 0
Degree of protection (IP), front side IP40
Depth 147 Millimetre
Rated operating voltage 220…690 Volt
Colour control element Black
Suitable for front mounting 4-hole TRUE
Motor drive integrated FALSE
Suitable for distribution board installation TRUE
Number of switches 1
Suitable for intermediate mounting FALSE
Suitable for floor mounting TRUE
Motor drive optional FALSE
With pre-assembled cabling FALSE
Rated permanent current at AC-23, 400 V 1000 Ampere
Documents
Image of product
Image of product

Chat untuk Stock

Rp.21.226.475,-

45% Rp.38.593.590,-

Add to Cart

Free Ongkir Jabodetabek Menggunakan Kurir Toko Listrikkita

Mungkin Anda Suka

Chat untuk Stock

Rp.24.951.868

53% Rp.53.089.080

C125N420FM

MCCB 4P 500-1250A 50KA 380/415VAC MICROLOGIC 2.0 MANUALLY OPERATED
Compare

Chat untuk Stock

Rp.33.528.660

45% Rp.60.961.200

C080H45EFM

MCCB 4P 320-800A 70KA 380/415VAC MICROLOGIC 5.0 E MANUALLY OPERATED
Compare

Chat untuk Stock

Rp.59.808.854

45% Rp.108.743.370

C100L420FM

MCCB 4P 400-1000A 150KA 380/415VAC MICROLOGIC 2.0 MANUALLY OPERATED
Compare

Chat untuk Stock

Rp.149.454

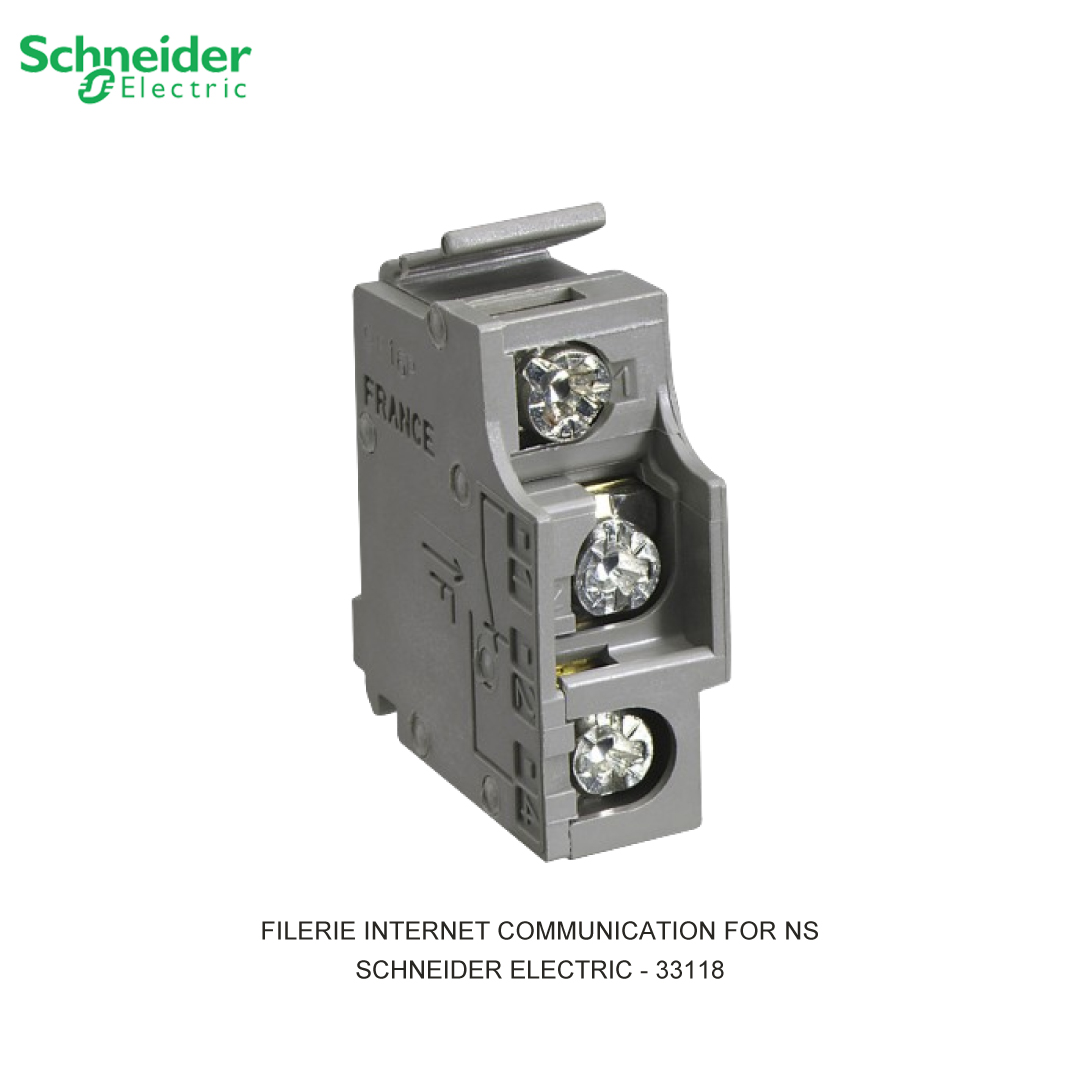

33118

FILERIE INTERNET COMMUNICATION FOR NS
Compare

Chat untuk Stock

Rp.653.746

52% Rp.1.361.970

G12F3A40

GOPACT MCCB 3P3D 40A 30KA ADJUSTABLE THERMAL
Compare

Chat untuk Stock

Rp.743.589

45% Rp.1.351.980

G12F4F25

GOPACT MCCB 4P4D 25A 30KA FIXED THERMAL
Compare

Chat untuk Stock

Rp.47.165.399

45% Rp.85.755.270

C125H45EFM

MCCB 4P 500-1250A 70KA 380/415VAC MICROLOGIC 5.0 E MANUALLY OPERATED
Compare

Chat untuk Stock

Rp.435.831

52% Rp.907.980

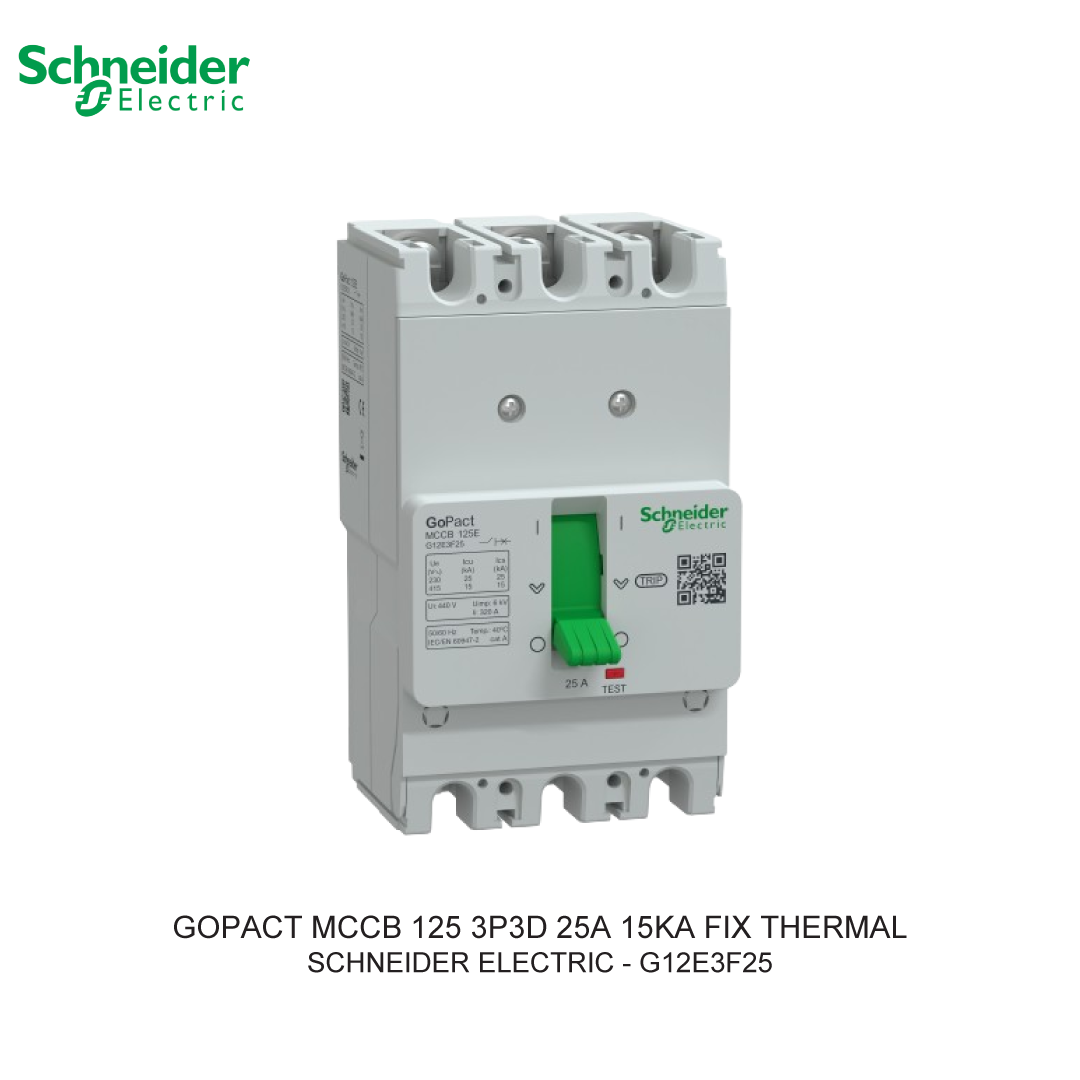

G12E3F25

GOPACT MCCB 3P3D 25A 15KA FIX THERMAL
Compare

Chat untuk Stock

Rp.1.080.585

45% Rp.1.964.700

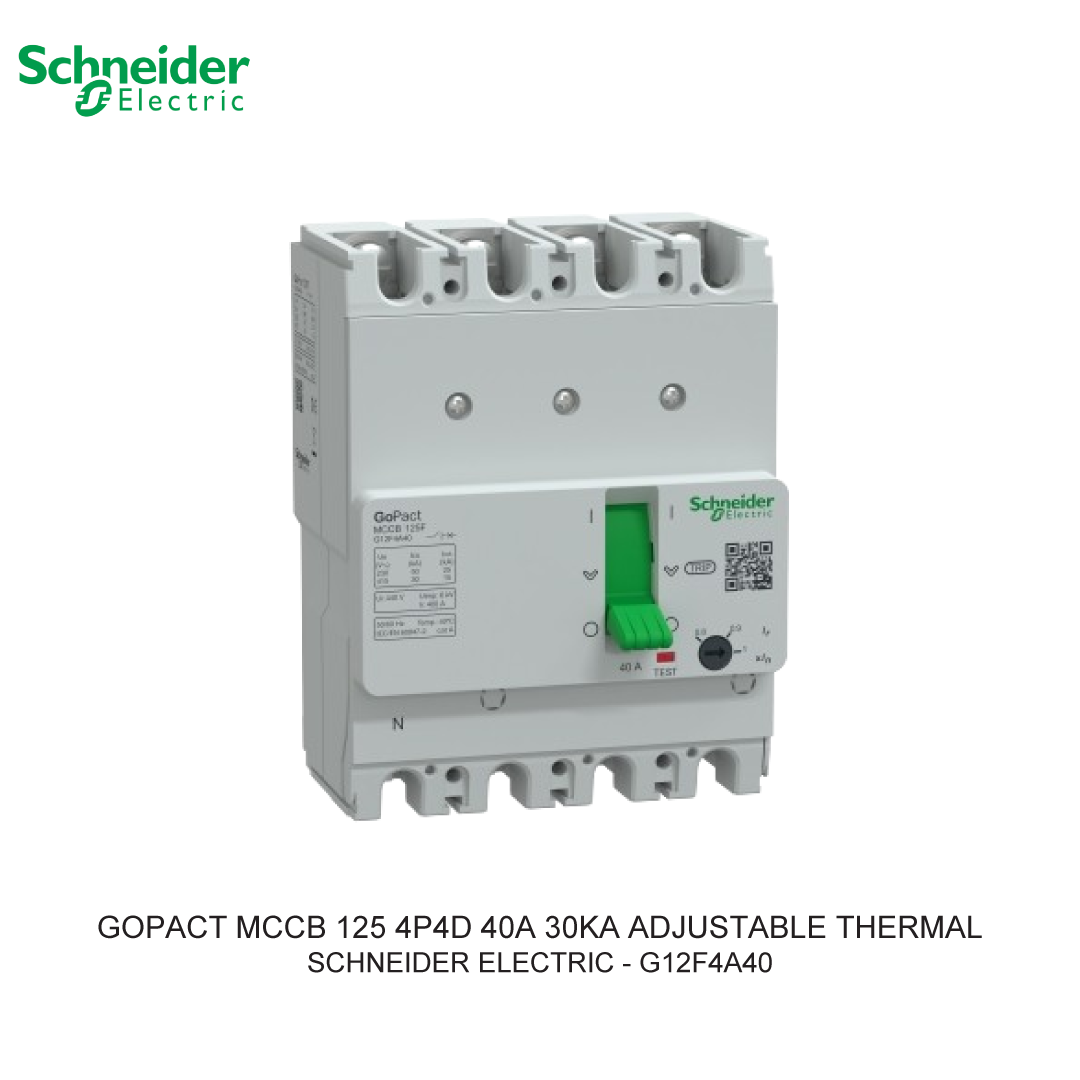

G12F4A40

GOPACT MCCB 4P4D 40A 30KA ADJUSTABLE THERMAL
Compare

Chat untuk Stock

Rp.1.512.819

45% Rp.2.750.580

G20F4A125

GOPACT MCCB 4P4D 125A 36KA ADJUSTABLE THERMAL
Compare

Chat untuk Stock

Rp.435.831

52% Rp.907.980

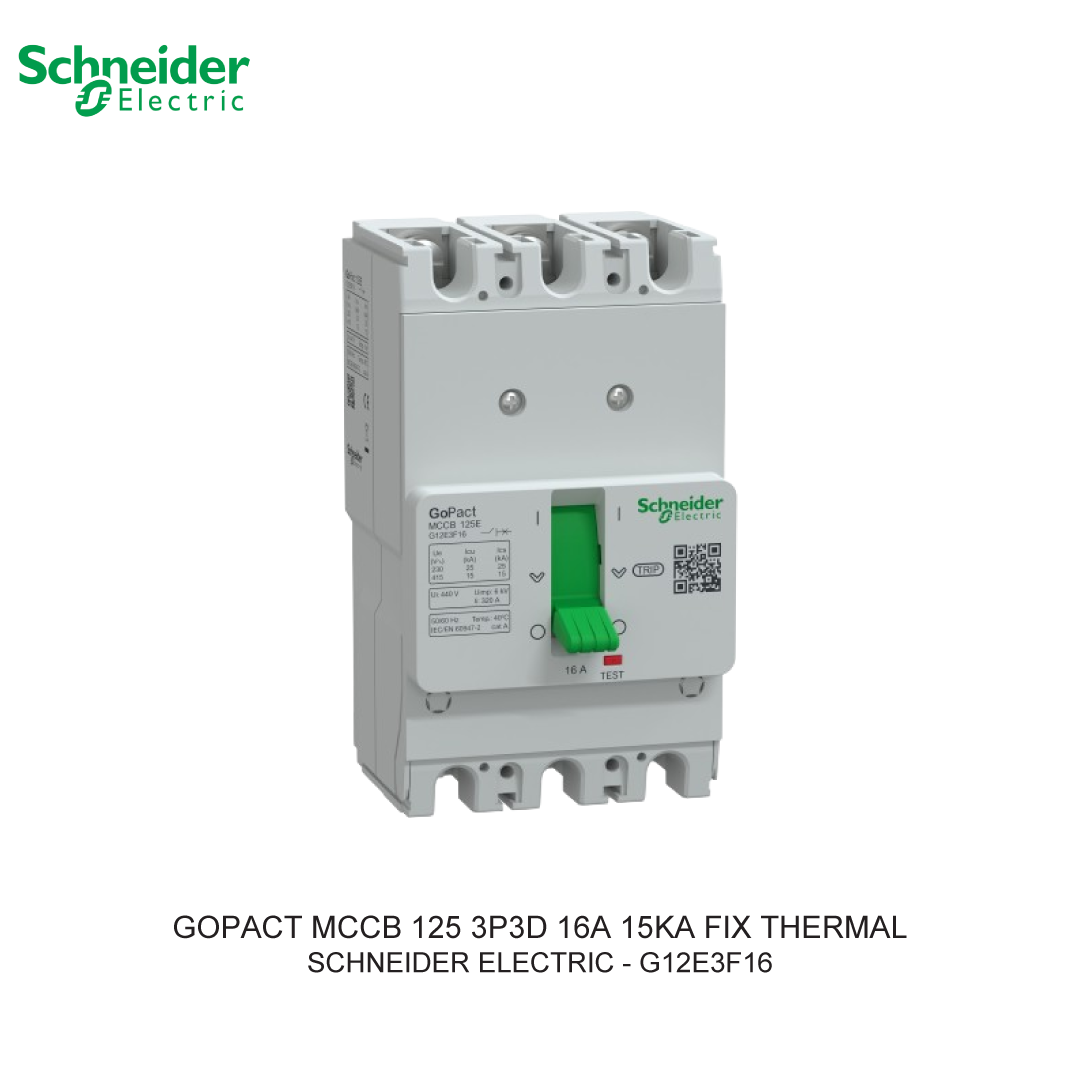

G12E3F16
