SWITCH DISCONNECTORS 4P 63A
SWITCH DISCONNECTORS 4P 63A

SWITCH DISCONNECTORS 4P 63A

Pilih Jumlah kutub
Pilih Arus pengenal
Kode Produk 28903
Nama Produk SWITCH DISCONNECTORS 4P 63A
Keterangan SWITCH DISCONNECTOR COMPACT INS63 SCHNEIDER ELECTRIC - 28903
Promo

SYARAT DAN KETENTUAN Ketentuan umum penggunaan website Akun & registrasi Pemesanan produk Harga & pembayaran Stok produk
Brand Schneider Electric
Poles 4P
Rated Current 63A
Tipe Compact INS
Kode Produk : 28903 Brand : Schneider Electric Nama Produk : SWITCH DISCONNECTORS 4P 63A Keterangan : SWITCH DISCONNECTOR COMPACT INS63 SCHNEIDER ELECTRIC - 28903

This Compact INS63 is a 4 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 63A at 415VAC in categories AC22A and AC23A. The rated voltage is 500VAC 50/60Hz or 250VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS63 is a class II insulation level front-face device as per IEC 60664 standard.

Specification
Type of electrical connection of main circuit Screw connection
Version as emergency stop installation FALSE
Type of control element Long turning handle
Version as reversing switch FALSE
Suitable for front mounting centre TRUE
Rated permanent current Iu 63 Ampere
Max. rated operation voltage Ue AC 500 Volt
Number of poles 4
Height 85 Millimetre
Version as main switch TRUE
Rated short-time withstand current lcw 3 kiloampere
Voltage release optional FALSE
Device construction Built-in device fixed built-in technique
Interlockable TRUE
Width 90 Millimetre
Version as maintenance-/service switch TRUE
Number of auxiliary contacts as normally closed contact 0
Version as safety switch FALSE
Number of auxiliary contacts as change-over contact 2
Number of auxiliary contacts as normally open contact 0
Degree of protection (IP), front side IP40
Depth 62.5 Millimetre
Rated operating voltage 690 Volt
Colour control element Black
Rated operation power at AC-23, 400 V 30 Kilowatt
Suitable for front mounting 4-hole TRUE
Suitable for distribution board installation TRUE
Motor drive integrated FALSE
Number of switches 1
Suitable for intermediate mounting FALSE
Suitable for floor mounting TRUE
Motor drive optional FALSE
With pre-assembled cabling FALSE
Rated permanent current at AC-23, 400 V 63 Ampere
Documents
Image of product
Image of product

Chat untuk Stock

Rp.1.115.550,-

40% Rp.1.859.250,-

Add to Cart

Free Ongkir Jabodetabek Menggunakan Kurir Toko Listrikkita

Mungkin Anda Suka

Chat untuk Stock

Rp.1.214.285

45% Rp.2.207.790

G20B4A40

GOPACT MCCB 4P4D 40A 25KA ADJUSTABLE THERMAL
Compare

Chat untuk Stock

Rp.928.571

45% Rp.1.688.310

G12T4A32

GOPACT MCCB 4P4D 32A 10KA ADJUSTABLE THERMAL
Compare

Chat untuk Stock

Rp.250.305

45% Rp.455.100

G20SPDR3P

TERMINAL EXTENSIONS GOPACT MCCB 200 3P3D 160A 45MM PITCH SPREADERS
Compare

Chat untuk Stock

Rp.1.279.253

52% Rp.2.665.110

G20B4A160

GOPACT MCCB 4P4D 160A 25KA ADJUSTABLE THERMAL
Compare

Chat untuk Stock

Rp.917.582

45% Rp.1.668.330

G20B3A100

GOPACT MCCB 3P3D 100A 25KA ADJUSTABLE THERMAL
Compare

Chat untuk Stock

Rp.558.908

52% Rp.1.164.390

G12E3F125

GOPACT MCCB 3P3D 125A 15KA FIX THERMAL
Compare

Chat untuk Stock

Rp.960.317

45% Rp.1.746.030

G12E4A20

GOPACT MCCB 4P4D 20A 15KA ADJUSTABLE THERMAL
Compare

Chat untuk Stock

Rp.191.697

45% Rp.348.540

G80STSHD4P

SHORT TERMINAL SHIELD GOPACT MCCB 800 4P4D
Compare

Chat untuk Stock

Rp.1.076.922

45% Rp.1.958.040

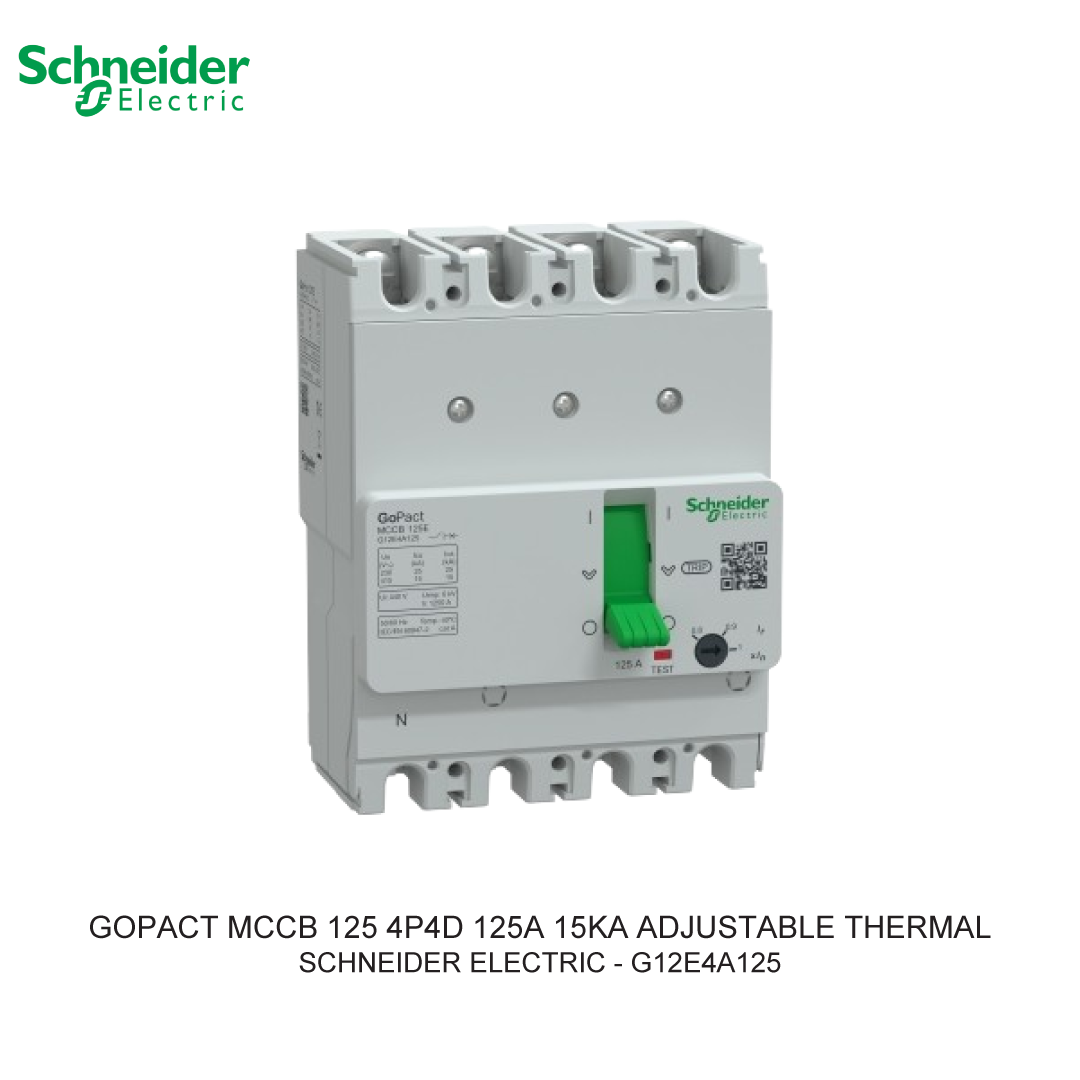

G12E4A125

GOPACT MCCB 4P4D 125A 15KA ADJUSTABLE THERMAL
Compare

Chat untuk Stock

Rp.1.080.585

45% Rp.1.964.700

G12F4A20

GOPACT MCCB 4P4D 20A 30KA ADJUSTABLE THERMAL
Compare

Chat untuk Stock

Rp.928.571

45% Rp.1.688.310

G12T4A80

GOPACT MCCB 4P4D 80A 10KA ADJUSTABLE THERMAL
Compare

Chat untuk Stock

Rp.73.871

45% Rp.134.310

G12STSHD3P

SHORT TERMINAL SHIELD GOPACT MCCB 125 3P3D
Compare

Chat untuk Stock

Rp.675.213

45% Rp.1.227.660

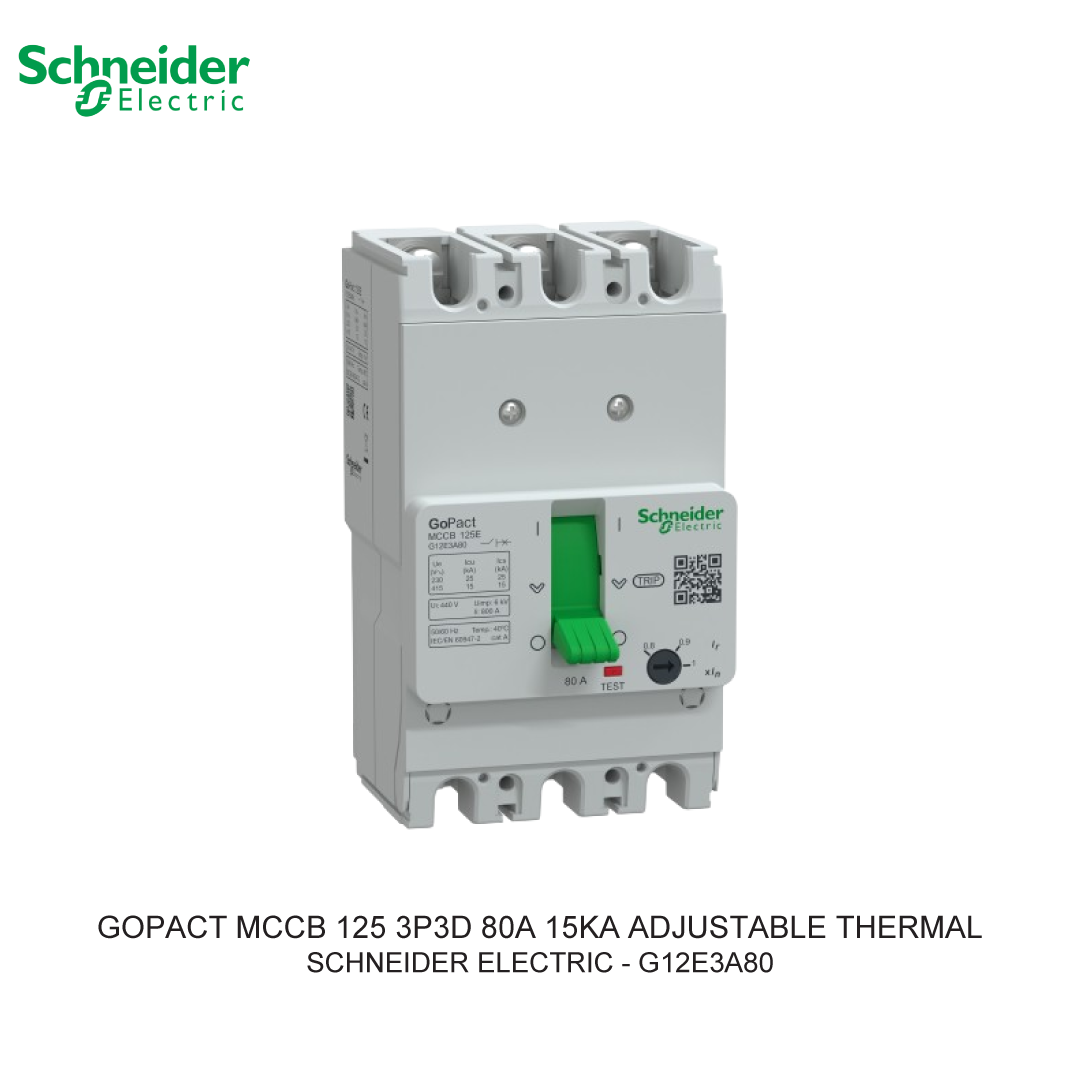

G12E3A80
